Hydraulic concrete block laying machine

Hydraulic concrete block laying machine
Hydraulic concrete block laying machine
Send Inquiry
Product Code : HCBMLM001
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
  • Price Range
  • Price
  • 640000 INR
Product Description

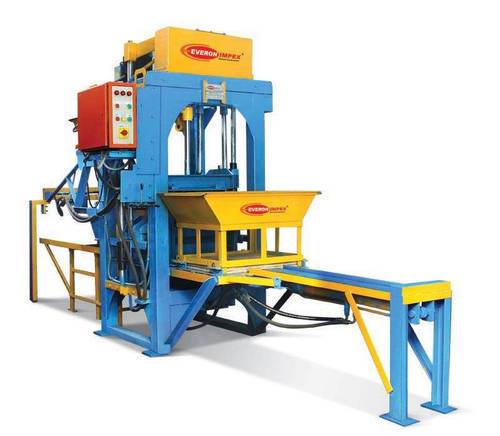

Hydraulic concrete block laying machine

Autofeeder Hollow/Solid Block Making Machine

This machine offered by us widely used in the construction industry for mass production.We offer heavy duty machine with high frequency vibrator motors with single pressing system.This is an egg laying type automatically raw material raw material feeder concrete making machine on wheels,which will laying blocks on the concrete floor and move to the next laying with the help of hydraulic system.Any types of concrtete blocks can be produced with the consistent quality by fixing different by fixing different types of moulds and ram in the machine.

2238 AUTOFEEDER MODEL

TRIPLE VIBRATOR

Total Power

10  H P

`3 Phase 415 V



Hydraulic Motor

5 H.P 1440 rpm

Vibrator Mould Motor

2  H.P 2880 rpm

Vibrator Ram Motor

1 H.P.2880 rpm

Travel Motor

2  H.P 1440 rpm

Weight

3650 kg (Approx)

Operating Pressure

140 kg/cm³

Method

Hydraulic Pressure

Warranty

1 Year

Condition

New

Motor Make

Kirloskar/Crompton/Havells

Hydraulic Cylinders

4

Hydraulic Tank

25 Litres

Material

Mild Steel Vizagukku Brand

Block Type

Solid/Hollow

Interchangable mould

Yes

production capacity 50-60 stroke/hour

400 x 200 x 100 mm  20 blocks/stroke

400 x 200 x 150 mm  12 blocks/stroke

400 x 200 x 200 mm  10blocks/stroke
